Uncontrolled Spillways
|

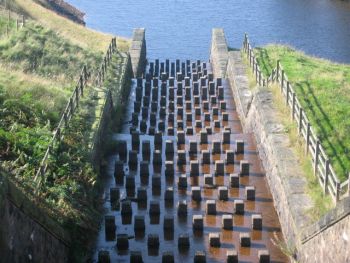

| A stepped chute spillway in England. (Wikipedia) |
“A controlled crest is one that includes gates which are used to control the flow; the uncontrolled crest is one unencumbered by gates”.[1]
“Common to all uncontrolled spillways that are not integral with a concrete dam (i.e., located away from the dam on or through abutments, or on or through reservoir rim) is that existing topography must provide adequate space without excessive excavation. Also, the existing topography must allow appropriate orientation (alignment of the spillway between the reservoir and downstream river or stream) of the conveyance feature and terminal structure. Additionally, economics will come into play for all uncontrolled spillways”.[2]
Types of Uncontrolled Spillways
Best Practices Resources
National Engineering Handbook: Chapter 50 - Earth Spillway Design, NRCS
Hydraulic Design of Spillways (EM 1110-2-1603), USACE
Trainings
On-Demand Webinar: Introduction to Earth Spillway Design and Evaluation
On-Demand Webinar: Dam Safety with 3D Weirs
On-Demand Webinar: Hydraulic Design of Labyrinth Weirs
Citations:
Revision ID: 7133
Revision Date: 07/11/2023
